WhizThread Tool Holders for Threading in CNC Swiss Automatics

Selecting Tool Holder for Threading

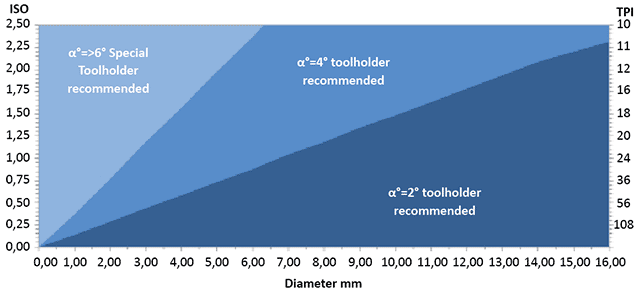

To achieve best performance when threading small parts it is important to choose the correct helix angle of your tool holder. The WhizThread tool holders are available with a 2° and 4° helix angle. The below table shows what tool holder to use depending on what the pitch and diameter of the part is. For a very high pitch to diameter ratio we recommend special tool holders.



 Tool holder to use for threading

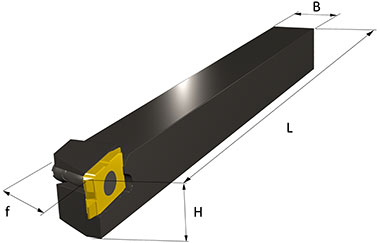

TPT

Tool holder with WhizFix pin-type clamping for threading.



Go to: Inserts for threading

Pin-type toolholder for thread turning


Toolholder H B L f α Insert Pin + Nut Bit Stock Price
group
TPT13ER 1010K-2 10 10 125 10 2° T13ER/EN Pin 12 T20 r A62
TPT13ER 1010K-4 10 10 125 10 4° T13ER/EN Pin 12 T20 r A62
TPT13ER 0375K-2 3/8” 3/8” 125 3/8” 2° T13ER/EN Pin 12 T20 r A62
TPT13ER 0375K-4 3/8” 3/8” 125 3/8” 4° T13ER/EN Pin 12 T20 r A62
TPT13ER 1212K-2 12 12 125 12 2° T13ER/EN Pin 12 T20 r A62
TPT13ER 1212K-4 12 12 125 12 4° T13ER/EN Pin 12 T20 r A62
TPT13ER 0500K-2 1/2” 1/2” 125 1/2” 2° T13ER/EN Pin 12 T20 r A62
TPT13ER 0500K-4 1/2” 1/2” 125 1/2” 4° T13ER/EN Pin 12 T20 r A62
TPT13ER 1616K-2 16 16 125 16 2° T13ER/EN Pin 12 T20 r A63
TPT13ER 1616K-4 16 16 125 16 4° T13ER/EN Pin 12 T20 r A63

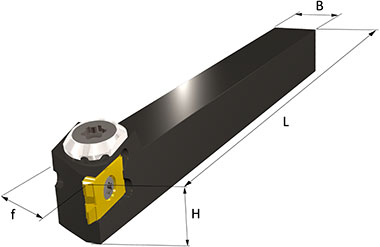

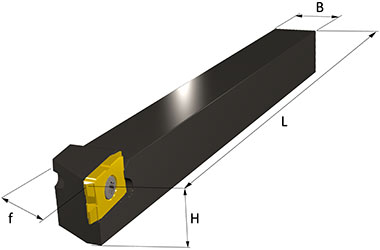

TST

Tool holder with centerlock screw for threading.



Go to: Inserts for threading

Skrew-type toolholder for thread turning


TOOLHOLDER H B L f α INSERT SCREW KEY STOCK PRICE
GROUP
TST13ER 88K-2 8 8 125 8 2° T13ER/EN M3x7 T9IP r A52
TST13ER 88K-4 8 8 125 8 4° T13ER/EN M3x7 T9IP r A52
TST13ER 1010K-2 10 10 125 10 2° T13ER/EN M3x7 T9IP r A52
TST13ER 1010K-4 10 10 125 10 4° T13ER/EN M3x7 T9IP r A52
TST13ER 1010K-6 10 10 125 10 6° T13ER/EN M3x7 T9IP r A52
TST13ER 0375K-2 3/8” 3/8” 125 3/8” 2° T13ER/EN M3x7 T9IP r A52
TST13ER 0375K-4 3/8” 3/8” 125 3/8” 4° T13ER/EN M3x7 T9IP r A52
TST13ER 1212K-2 12 12 125 12 2° T13ER/EN M3x7 T9IP r A52
TST13ER 1212K-4 12 12 125 12 4° T13ER/EN M3x7 T9IP r A52
TST13ER 1212K-6 12 12 125 12 6° T13ER/EN M3x7 T9IP r A52
TST13ER 1212K-8 12 12 125 12 8° T13ER/EN M3x7 T9IP r A52
TST13ER 0500K-2 1/2” 1/2” 125 1/2” 2° T13ER/EN M3x7 T9IP r A52
TST13ER 0500K-4 1/2” 1/2” 125 1/2” 4° T13ER/EN M3x7 T9IP r A52
TST13ER 1616K-2 16 16 125 16 2° T13ER/EN M3x7 T9IP r A53
TST13ER 1616K-4 16 16 125 16 4° T13ER/EN M3x7 T9IP r A53
TST13ER 0750K-2 3/4” 3/4” 125 3/4” 2° T13ER/EN M3x7 T9IP r A54
TST13ER 0750K-4 3/4” 3/4” 125 3/4” 4° T13ER/EN M3x7 T9IP r A54
TST13ER 2020K-2 20 20 125 20 2° T13ER/EN M3x7 T9IP r A54
TST13ER 2525M-2 25 25 150 25 2° T13ER/EN M3x7 T9IP r A55
TST13ER 1000M-2 1” 1” 150 1” 2° T13ER/EN M3x7 T9IP r A55


TPT Coolant Through Tool Holder

WhizHip pin type tool holder with coolant through for threading.



Go to: Inserts for threading

Tool holder with through coolant


Toolholder H B L f α Insert Pin + Nut Plug Bit Stock Price
group
TPT13ER 1010H-2C 10 10 100 10 2° T13ER/EN Pin12 M8x1 T20 r A82
TPT13ER 1010K-2C 10 10 125 10 2° T13ER/EN Pin12 M8x1 T20 r A82
TPT13ER 1010H-4C 10 10 100 10 4° T13ER/EN Pin12 M8x1 T20 r A82
TPT13ER 1010K-4C 10 10 125 10 4° T13ER/EN Pin12 M8x1 T20 r A82
TPT13ER 0375K-2C 3/8” 3/8” 125 3/8” 2° T13ER/EN Pin12 1/8 NPT T20 r A82
TPT13ER 0375K-4C 3/8” 3/8” 125 3/8” 4° T13ER/EN Pin12 1/8 NPT T20 r A82
TPT13ER 1212K-2C 12 12 125 12 2° T13ER/EN Pin12 1/8 NPT T20 r A82
TPT13ER 1212K-4C 12 12 125 12 4° T13ER/EN Pin12 1/8 NPT T20 r A82
TPT13ER 0500K-2C 1/2” 1/2” 125 1/2” 2° T13ER/EN Pin12 1/8 NPT T20 r A82
TPT13ER 0500K-4C 1/2” 1/2” 125 1/2” 4° T13ER/EN Pin12 1/8 NPT T20 r A82
TPT13ER 1616K-2C 16 16 125 16 2° T13ER/EN Pin12 1/8 NPT T20 r A83



TST Coolant Through Tool Holder

WhizHip tool holder with coolant through for threading.



Go to: Inserts for threading

Tool holder with through coolant


TOOLHOLDER H B L f α INSERT SCREW PLUG KEY STOCK PRICE
GROUP
TST13ER 88H-2C 8 8 100 10 2° T13ER/EN M3x7 M5x0,8 T9IP r A73
TST13ER 88k-2C 8 8 125 10 2° T13ER/EN M3x7 M5x0,8 T9IP r A73
TST13ER 88H-4C 8 8 100 10 4° T13ER/EN M3x7 M5x0,8 T9IP r A73
TST13ER 88k-4C 8 8 125 10 4° T13ER/EN M3x7 M5x0,8 T9IP r A73
TST13ER 1010H-2C 10 10 100 10 2° T13ER/EN M3x7 M8x1 T9IP r A72
TST13ER 1010K-2C 10 10 125 10 2° T13ER/EN M3x7 M8x1 T9IP r A72
TST13ER 1010H-4C 10 10 100 10 4° T13ER/EN M3x7 M8x1 T9IP r A72
TST13ER 1010K-4C 10 10 125 10 4° T13ER/EN M3x7 M8x1 T9IP r A72
TST13ER 0375K-2C 3/8” 3/8” 125 3/8” 2° T13ER/EN M3x7 M8x1 T9IP r A72
TST13ER 0375K-4C 3/8” 3/8” 125 3/8” 4° T13ER/EN M3x7 M8x1 T9IP r A72
TST13ER 1212K-2C 12 12 125 12 2° T13ER/EN M3x7 1/8" NPT T9IP r A72
TST13ER 1212K-4C 12 12 125 12 4° T13ER/EN M3x7 1/8" NPT T9IP r A72
TST13ER 0500K-2C 1/2” 1/2” 125 1/2” 2° T13ER/EN M3x7 1/8" NPT T9IP r A72
TST13ER 0500K-4C 1/2” 1/2” 125 1/2” 4° T13ER/EN M3x7 1/8" NPT T9IP r A72
TST13ER 1616K-2C 16 16 125 16 2° T13ER/EN M3x7 1/8" NPT T9IP r A73

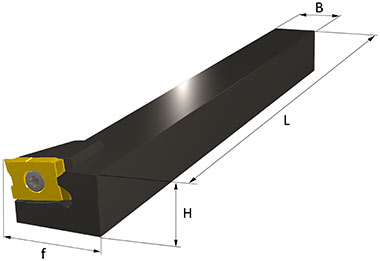

ZST

Tool holder with centerlock screw for threading in flat bed lathes.



Go to: Inserts for threading

Toolholder for thread turning in flat bed lathes


Toolholder H B L f   Insert Screw Key Stock Price
group
ZST13ER 1212K-2 12 12 125 20 2° T13ER/EN M3x7 T9IP r A72
ZST13ER 1616K-2 16 16 125 24 2° T13ER/EN M3x7 T9IP r A73

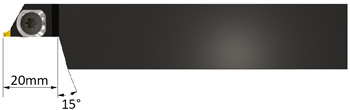

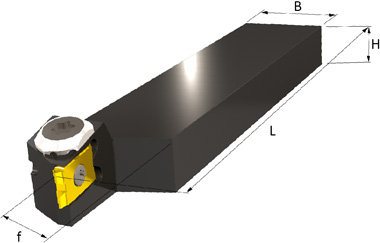

TST | Shifted WhizHip Toolholders

Tool holder with shifted edge for extended nose collets


Go to: Inserts for threading


Toolholder H B L f α Insert Screw Plug Key Stock Price group
TST13ER 1020H-2C 10 20 100 10 2° T13ER/EN M3x7 M8x1 T9IP r A72
TST13ER 1020H-4C 10 20 100 10 4° T13ER/EN M3x7 M8x1 T9IP r A72
TST13ER 1224K-2C 12 24 125 12 2° T13ER/EN M3x7 1/8 NPT T9IP r A72
TST13ER 1224K-4C 12 24 125 12 4° T13ER/EN M3x7 1/8 NPT T9IP r A72
TST13ER 0510K-2C 1/2” 1” 125 1/2” 2° T13ER/EN M3x7 1/8 NPT T9IP r A72
TST13ER 0510K-4C 1/2” 1” 125 1/2” 4° T13ER/EN M3x7 1/8 NPT T9IP r A72
TST13ER 1632K-2C 16 16 125 16 2° T13ER/EN M3x7 1/8 NPT T9IP r A73

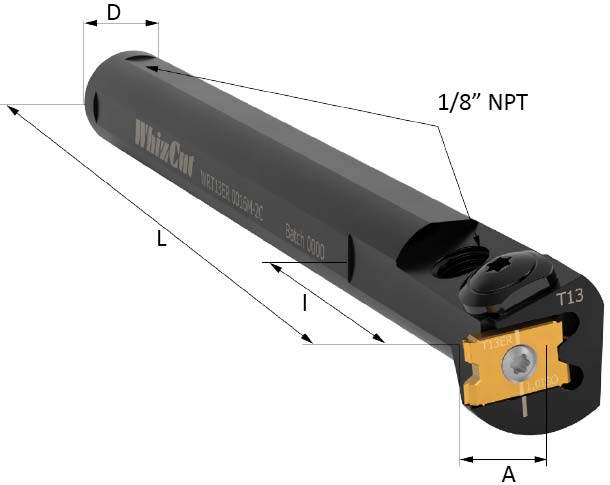

WRT | Round shank WhizHip holders

Round shank tool holder with WhizHip coolant through for threading.



Go to: Inserts for threading


Toolholder D A L l α Insert Plug Screw Key Stock Price
Group
WRT13ER 0625M-2C 5/8" 10 150 40 2° T13ER/EN 1/8" NPT M3X7 T9IP r A72
WRT13ER 0625M-4C 5/8" 10 150 40 4° T13ER/EN 1/8" NPT M3X8 T9IP r A72
WRT13ER 0016M-2C 16 10 150 40 2° T13ER/EN 1/8" NPT M3X7 T9IP r A72
WRT13ER 0016M-4C 16 10 150 40 4° T13ER/EN 1/8" NPT M3X8 T9IP r A72
WRT13ER 0750M-2C 3/4" 10 150 40 2° T13ER/EN 1/8" NPT M3X7 T9IP r A72
WRT13ER 0750M-4C 3/4" 10 150 40 4° T13ER/EN 1/8" NPT M3X8 T9IP r A72
WRT13ER 0020M-2C 20 10 150 40 2° T13ER/EN 1/8" NPT M3X7 T9IP r A72
WRT13ER 0020M-4C 20 10 150 40 4° T13ER/EN 1/8" NPT M3X8 T9IP r A72
WRT13ER 0022M-2C 22 10 150 40 2° T13ER/EN 1/8" NPT M3X7 T9IP r A73
WRT13ER 0022M-4C 22 10 150 40 4° T13ER/EN 1/8" NPT M3X8 T9IP r A73
WRT13ER 0025M-2C 25 10 150 40 2° T13ER/EN 1/8" NPT M3X7 T9IP r A73
WRT13ER 0025M-4C 25 10 150 40 4° T13ER/EN 1/8" NPT M3X8 T9IP r A73
WRT13ER 1000M-2C 1" 10 150 40 2° T13ER/EN 1/8" NPT M3X7 T9IP r A73
WRT13ER 1000M-4C 1" 10 150 40 4° T13ER/EN 1/8" NPT M3X8 T9IP r A73




ABT | WhizAdjust toolholder

Height adjustable toolholder head for threading. Quick and easy height adjustment without losing in stability. This makes it perfect for threading against the sub spindle.



Go to:
Toolholder shank
Inserts for threading


Tool holder head H B A α C Max
Doc		 Max Feed
Length		 Insert Type Clamping Screw Key Stock Price
Group
ABT13ER-46-45-2 46 24 10 2° 2 45 T13ER/EN M3x7IP T9IP r D55
ABT13ER-46-45-4 46 24 10 4° 2 45 T13ER/EN M3x7IP T9IP r D55
