Inlets, Plugs and Adaptors for High Pressure Cooling

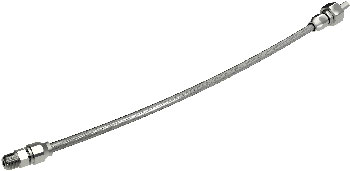

Inlet Connection Feed Line

Part No Art Name Additional info
101961 Connection feed line, flex-tube MiniPlug 5,
300 mm, Hose Set M8x1
ND 5, tube stainless steel,
outside thread G1/4“, pipe end
102166 Connection feed line, flex-tube MiniPlug 5,
320-1000 mm
ND 5, tube stainless steel,
outside thread G1/4“, pipe end
102190 NPT Connection feed line, flex-tube MiniPlug 5,
300 mm
ND 5, tube stainless steel,
outside thread 1/4“NPT, pipe end
102609 NPT Connection feed line, flex-tube MiniPlug 5,
320-1000 mm
ND 5, tube stainless steel,
outside thread 1/4“NPT, pipe end
Feed line

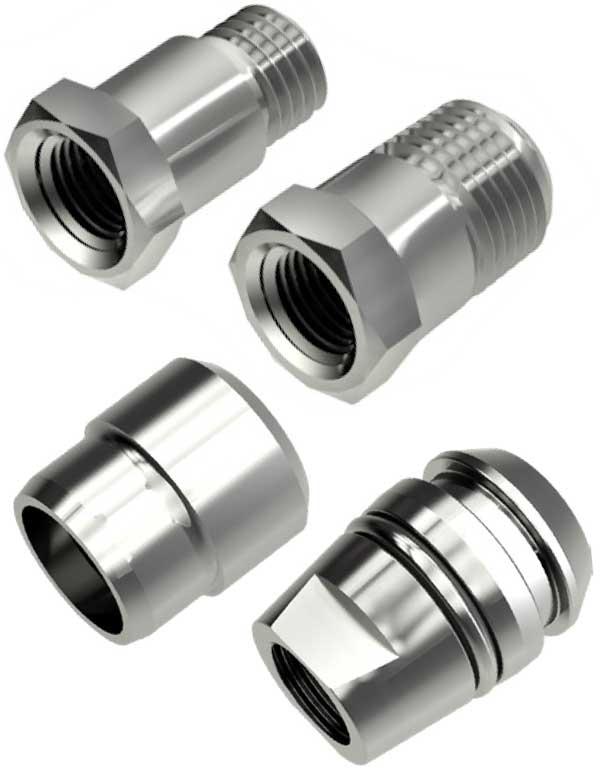

Plugs and Thread Adaptors

Part No Description
101980
M 8x1 female to G 1/8 male
101979
M 8x1 female to M 10x1 male
102585
M 8x1 female to M 8x1 male Ø9,5
102915
M 8x1 female to M 12 male
102188
M 8x1 female to 1/8" NPT male
102435
M 8x1 female to M5 male
102434
M 8x1 female to M6 male
102864
M 8x1 female to M8 male
102914
G1/8 female to UNF7/16-20 male
102292
G1/8 female to G1/4 male
101919 Seal plug
102042
M 8x1 female to MiniPlug-jack
102601
M 8x1 female to MiniPlug-jack
102683
M 8x1 male to MiniPlug-jack
102685
NPT 1/8 female to MiniPlug-jack
102602
NPT 1/4 female to MiniPlug-jack
102913
UNF 7/16 female to MiniPlug-jack
102928
Collet ER16 to G1/8 female
102751
Cutting Ring Ø4 mm
