Height Adjustable Tool holders

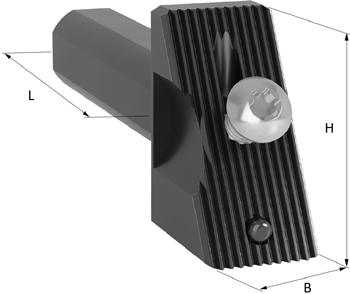

Toolholder Shank

Toolholder shank D L I standard adj.holder Flats Screw Key Stock Price G.
AB4624 D0625J 0.625" 80 45 4 M8x10 T40 r D75
AB4624 D0750J 0.750" 80 45 4 M8x10 T40 r D75
AB4624 D1000J 1" 80 45 4 M8x10 T40 r D75
AB4624 D16J 16 80 45 4 M8x10 T40 r D75
AB4624 D20J 20 80 45 4 M8x10 T40 r D75
AB4624 D22J 22 80 45 4 M8x10 T40 r D75
AB4624 D25J 25 80 45 4 M8x10 T40 r D75

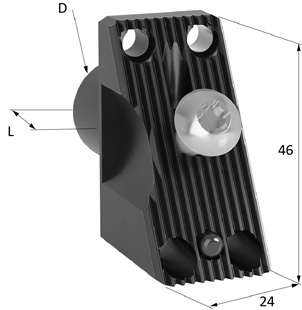

Toolholder Shank - front clamping


Toolholder shank D L I standard adj.holder Hole position Screw Key Stock Price G.
AB4624-S38D16 16+22 15 45 38/14 M8x10 T40 r D75

Note: All front clamping holders come with 16 mm shank plus 22 mm sleeve.


Shank Sleeves

Shank sleeves

 D d L Price Group
AT0750-16-15 3/4" 16 15 D3
AT1000-16-15 1" 16 15 D3
AT20-16-15 20 16 15 D3
AT22-16-15 22 16 15 D3
AT25-16-15 25 16 15 D3

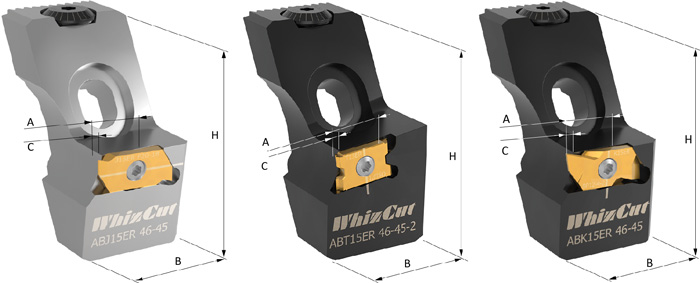

Toolholder Adjustable Head

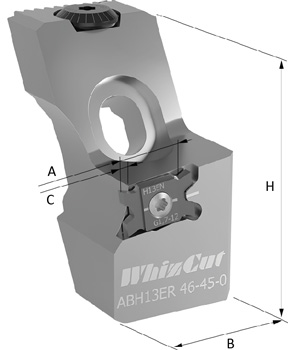

Toolholder Head H B A C Mac
Doc		 Max Feed
Length		 Insert
Type		 Clamping
Screw		 Key Stock Price
ABH13ER-46-45-0 46 24 11 3 45 H13ER M3x7IP J3IP r D55
ABT13ER-46-45-2 46 24 10 2 45 T13ER M3x7IP J3IP r D55
ABT13ER-46-45-4 46 24 10 2 45 T13ER M3x7IP J3IP r D55
ABJ15ER-46-45 46 24 10 2 45 J15ER M3x7IP J3IP r D55
ABK15ER-46-45 46 24 12 2 45 T13ER M3x7IP J3IP r D55




For more information, see the WhizGuide!
