WhizThread - Threading Inserts for External Threading in Swiss Automatics

Style V | Threading Inserts for Partial Profile Micro Threading

          STOCK PRICE
GROUP
INSERTS L V° t R 8M C8 F8 B8
T13ER V55-02-02 13 55 0,2 0,2 r k r r E3
T13ER V55-05-02 13 55 0,5 0,2 r k r r E2
T13ER V60-01-01 13 60 0,1 0,01 r k r r E3
T13ER V60-02-02 13 60 0,2 0,02 r k r r E3
T13ER V60-05-02 13 60 0,5 0,02 r k r r E2
T13ER V60-05-05 13 60 0,5 0,05 r k r r E2

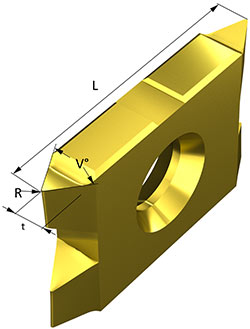

Partial profile insert
Partial Profile Threading

Style V | Threading Inserts for Partial Profile Threading

          STOCK PRICE
GROUP
INSERTS L V° t R 8M C8 F8 B8 NF8 ND8
T13EN V55-11-10 13 55 1,1 0,1 e k e e e e E3
T13EN V60-11-05 13 60 1,1 0,05 e k e e e e E2
T13EN V60-11-10 13 60 1,1 0,1 e k e e e e E2
T13EN V80-11-14 13 80 1,1 0,14 e k e e e e E3
T13EN V90-11 13 90 1,1 C 0,10 e k e e e e E2


Threading insert for partial profile threading

Style T-ISO | Inserts for Full Profile Micro Threading ISO

PITCH       STOCK PRICE
GROUP
MM INSERTS L t 8M C8 F8 B8
0,2 T13ER 0,2ISO 13 0,15 r - - r
0,25 T13ER 0,25ISO 13 0,2 r - r r E5
0,3 T13ER 0,3ISO 13 0,2 r - r r E5
0,35 T13ER 0,35ISO 13 0,25 r - r r E5
0,4 T13ER 0,4ISO 13 0,25 r k r r E4
0,45 T13ER 0,45ISO 13 0,3 r k r r E4
0,5 T13ER 0,5ISO 13 0,3 r k r r E3
0,6 T13ER 0,6ISO 13 0,35 r k r r E3
0,7 T13ER 0,7ISO 13 0,4 r k r r E3
0,75 T13ER 0,75ISO 13 0,4 r k r r E3
0,8 T13ER 0,8ISO 13 0,45 r k r r E3
1 T13ER 1,0ISO 13 0,55 r k r r E3
1,25 T13EN 1,25ISO 13 1,1 e k e e E2
1,5 T13EN 1,5ISO 13 1,1 e k e e E2
1,75 T13EN 1,75ISO 13 1,1 e k e e E2
2 T13EN 2,0ISO 13 1,1 e k e e E2

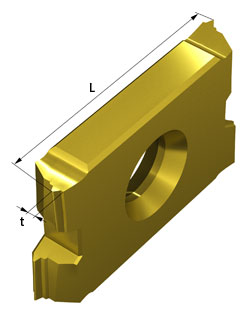

Full profile
Full Profile Threading

Small Thread Profiles (ER)

0,25-1,0 ISO and 80-24 UN





Larger Thread Profiles (EN)

≥1,25 ISO and ≥20 UN

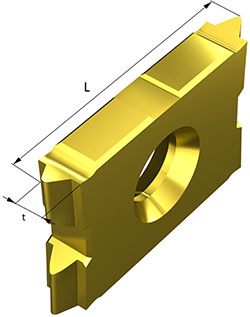

Insert for larger threading profiles

Style T-UN | Threading Inserts for Micro Threading UN
                        (UNC, UNF, UNEF, UNS)

        STOCK PRICE
GROUP
TPI INSERTS L t 8M C8 F8 B8
120 T13ER 120UN 13 0,15 r - r r E5
90 T13ER 90UN 13 0,2 r - r r E5
80 T13ER 80UN 13 0,2 r k r r E5
72 T13ER 72UN 13 0,25 r k r r E5
64 T13ER 64UN 13 0,25 r k r r E4
56 T13ER 56UN 13 0,3 r k r r E4
48 T13ER 48UN 13 0,35 r k r r E3
44 T13ER 44UN 13 0,35 r k r r E3
40 T13ER 40UN 13 0,4 r k r r E3
36 T13ER 36UN 13 0,4 r k r r E3
32 T13ER 32UN 13 0,45 r k r r E3
28 T13ER 28UN 13 0,5 r k r r E3
24 T13ER 24UN 13 0,55 r k r r E3
20 T13EN 20UN 13 1,1 e k e e E2
18 T13EN 18UN 13 1,1 e k e e E2
16 T13EN 16UN 13 1,1 e k e e E2
14 T13EN 14UN 13 1,1 e k e e E2
13 T13EN 13UN 13 1,1 e k e e E2
12 T13EN 12UN 13 1,1 e k e e E2

Style T-UNJ | Threading Inserts for Micro Threading
                          (UNJC, UNJF, UNJEF, UNJS)

        STOCK PRICE
GROUP
TPI INSERTS L t 8M C8 F8 B8
48 T13ER 48UNJ 13 0,35 r k r r E3
40 T13ER 40UNJ 13 0,4 r k r r E3
36 T13ER 36UNJ 13 0,4 r k r r E3
32 T13ER 32UNJ 13 0,45 r k r r E3
28 T13ER 28UNJ 13 0,5 r k r r E3
24 T13ER 24UNJ 13 0,55 r k r r E3
20 T13EN 20UNJ 13 1,1 e k e e E2
18 T13EN 18UNJ 13 1,1 e k e e E2
16 T13EN 16UNJ 13 1,1 e k e e E2
14 T13EN 14UNJ 13 1,1 e k e e E2
13 T13EN 13UNJ 13 1,1 e k e e E2
12 T13EN 12UNJ 13 1,1 e k e e E2





Style T-NPT | Threading Inserts for Threading NPT

        STOCK PRICE
GROUP
TPI INSERTS L t 8M C8 F8 B8
27 T13ER 27NPT 13 0,55 r k r r E5
18 T13EN 18NPT 13 1,1 e k e e E4
14 T13EN 14NPT 13 1,1 e k e e E4

Full profile
Full Profile Threading

Insert for larger threading profiles

Style T-NPTF | Threading Inserts for Threading NPTF

        STOCK PRICE
GROUP
TPI INSERTS L t 8M C8 F8 B8
27 T13ER 27NPTF 13 0,55 r k r r E5
18 T13EN 18NPTF 13 1,1 e k e e E4
14 T13EN 14NPTF 13 1,1 e k e e E4

Style T-W | Threading Inserts for Threading Whitworth

        STOCK PRICE
GROUP
TPI INSERTS L t 8M C8 F8 B8
28 T13ER 28W 13 0,55 r k r r E5
19 T13EN 19W 13 1,1 r k r r E4
14 T13EN 14W 13 1,1 r k r r E4



T-Tr | Inserts for Full Profile Threading Trapeziodal DIN 103

PITCH       STOCK PRICE
GROUP
MM INSERTS L t 8M F8 B8 NF8 ND8
1,5 T13EN 1,5TR 13 1,1 k k k e e E5
2 T13EN 2,0TR 13 1,1 k k k e e E4
2,5 T13EN 2,5TR 13 1,1 k k k e e E4


Full profile threading
Partial Profile Threading

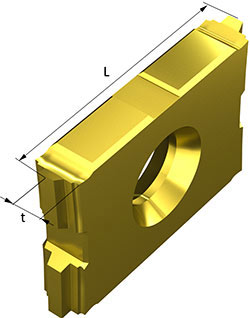

Threading insert for Trapeziodal, ACME and STUB ACME

T-ACME | Inserts for Full Profile Threading ACME

        STOCK PRICE
GROUP
TPI INSERTS L t 8M F8 B8 NF8 ND8
16 T13EN 16ACME 13 1,1 K K K e e E5
14 T13EN 14ACME 13 1,1 K K K e e E4
12 T13EN 12ACME 13 1,1 K K K e e E4
10 T13EN 10ACME 13 1,1 K K K e e E4


T-STACME | Inserts for Full Profile Threading STUB ACME

        STOCK PRICE
GROUP
TPI INSERTS L t 8M F8 B8 NF8 ND8
16 T13EN 16STACME 13 1,1 K K K e e E5
14 T13EN 14STACME 13 1,1 K K K e e E4
12 T13EN 12STACME 13 1,1 K K K e e E4
10 T13EN 10STACME 13 1,1 K K K e e E4




Additional information

Tool holders for Threading
Carbide Grades
Threading inserts for K-type tool holders
