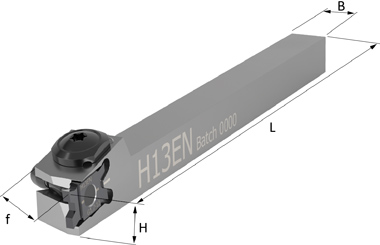

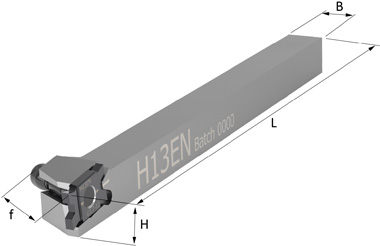

TPH | Toolholders with WhizFix pin type clamping

Toolholder H B L f α Insert Pin + Nut Bit Stock Price
group
TPH13ER 1010K-0 10 10 125 10 0° H13EN Pin 12 T20 r A62
TPH13ER 0375K-0 3/8” 3/8” 125 3/8” 0° H13EN Pin 12 T20 r A62
TPH13ER 1212K-0 12 12 125 12 0° H13EN Pin 12 T20 r A62
TPH13ER 0500K-0 1/2” 1/2” 125 1/2” 0° H13EN Pin 12 T20 r A62
TPH13ER 1616K-0 16 16 125 16 0° H13EN Pin 12 T20 r A63


TSH | Toolholders with convertional clamping

Toolholder H B L f α Insert Screw Key Stock
Price
group
TSH13ER 88K-0 8 8 125 8 0° H13EN M3x7 T9IP r A52
TSH13ER 1010K-0 10 10 125 10 0° H13EN M3x7 T9IP r A52
TSH13ER 0375K-0 3/8” 3/8” 125 3/8” 0° H13EN M3x7 T9IP r A52
TSH13ER 1212K-0 12 12 125 12 0° H13EN M3x7 T9IP r A52
TSH13ER 0500K-0 1/2” 1/2” 125 1/2” 0° H13EN M3x7 T9IP r A52
TSH13ER 1616K-0 16 16 125 16 0° H13EN M3x7 T9IP r A53
TSH13ER 0750K-0 3/4” 3/4” 125 3/4” 0° H13EN M3x7 T9IP r A54
TSH13ER 2020K-0 20 20 125 20 0° H13EN M3x7 T9IP r A54
TSH13ER 2525M-0 25 25 150 25 0° H13EN M3x7 T9IP r A55
TSH13ER 1000M-0 1” 1” 150 1” 0° H13EN M3x7 T9IP r A55

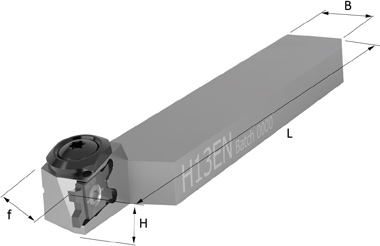

TPH | WhizHip pin type toolholders for high pressure coolant

Toolholder H B L f α Insert Pin + Nut Plug Bit Stock
Price group
TPH13ER 1010H-0C 10 10 100 10 0° H13EN Pin12 M8x1 T20 r A82
TPH13ER 1010K-0C 10 10 125 10 0° H13EN Pin12 M8x1 T20 r A82
TPH13ER 0375K-0C 3/8” 3/8” 125 3/8” 0° H13EN Pin12 M8x1 T20 r A82
TPH13ER 1212K-0C 12 12 125 12 0° H13EN Pin12 1/8 NPT T20 r A82
TPH13ER 0500K-0C 1/2” 1/2” 125 1/2” 0° H13EN Pin12 1/8 NPT T20 r A82
TPH13ER 1616K-0C 16 16 125 16 0° H13EN Pin12 1/8 NPT T20 r A83

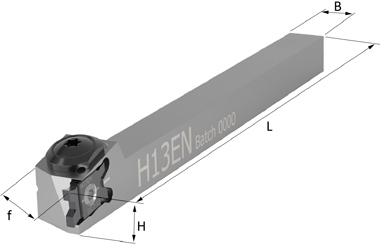

TSH | WhizHip toolholders for high pressure coolant

Toolholder H B L f Insert Screw Plug Key Stock
Price group
TSH13ER 88H-0C 8 8 100 10 H13 M3x7 M5x0,8 T9IP r A73
TSH13ER 88k-0C 8 8 125 10 H13 M3x7 M5x0,8 T9IP r A73
TSH13ER 1010H-0C 10 10 100 10 H13 M3x7 M8x1 T9IP r A72
TSH13ER 1010K-0C 10 10 125 10 H13 M3x7 M8x1 T9IP r A72
TSH13ER 0375K-0C 3/8” 3/8” 125 3/8” H13 M3x7 M8x1 T9IP r A72
TSH13ER 1212K-0C 12 12 125 12 H13 M3x7 1/8" NPT T9IP r A72
TSH13ER 0500K-0C 1/2” 1/2” 125 1/2” H13 M3x7 1/8" NPT T9IP r A72
TSH13ER 1616K-0C 16 16 125 16 H13 M3x7 1/8" NPT T9IP r A73




TSH | Shifted WhizHip toolholders

Toolholder H B L f α Insert Screw Plug Key Stock
Price group
TSH13ER 1020H-0C 10 20 125 10 0° H13EN M3x7 M8x1 T9IP r A72
TSH13ER 1224K-0C 12 24 125 12 0° H13EN M3x7 1/8 NPT T9IP r A72
TSH13ER 0510K-0C 1/2” 1” 125 1/2” 0° H13EN M3x7 1/8 NPT T9IP r A72
TSH13ER 1632K-0C 16 32 125 16 0° H13EN M3x7 1/8 NPT T9IP r A73

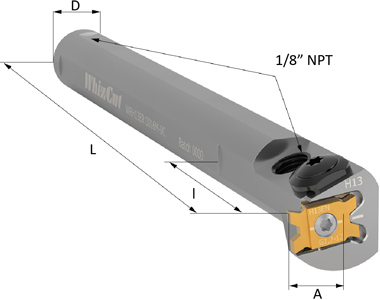

WRH | Round shank WhizHip holders

Toolholder D A L I Insert Coolant thread Screw Key Stock
Price group
WRH13ER 0625M-0C 5/8" 10 150 40 H13ER 1/8" NPT M3X7 T9IP k A72
WRH13ER 0016M-0C 16 10 150 40 H13ER 1/8" NPT M3X7 T9IP k A72
WRH13ER 0750M-0C 3/4" 10 150 40 H13ER 1/8" NPT M3X7 T9IP k A72
WRH13ER 0020M-0C 20 10 150 40 H13ER 1/8" NPT M3X7 T9IP k A72
WRH13ER 0022M-0C 22 10 150 40 H13ER 1/8" NPT M3X7 T9IP k A73
WRH13ER 0025M-0C 25 10 150 40 H13ER 1/8" NPT M3X7 T9IP k A73
WRH13ER 1000M-0C 1" 10 150 40 H13ER 1/8" NPT M3X7 T9IP k A73

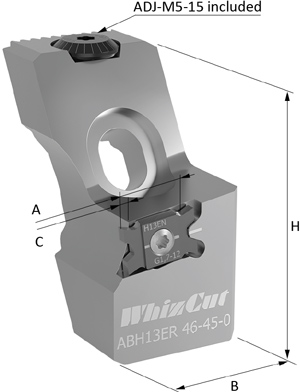

ABH | WhizAdjust toolholder

Toolholder H B A C Max DOC Max feed length
Insert type Adjustment Screw Adj Key Clamping Screw Key Stock
Price Group
ABH13ER-46-45-0 46 24 11 3 45 H13ER ADJ-M5-15 T15 M3x7 T9IP r D55

More information on WhizAdjust adjustable toolholders
