J-type Tool Holders for Front Turning

WPJ

Tool holder with WhizFix clamping for straight turning, copy turning, groove turning and profile turning.



Go to Inserts for:
Turning
 Copy Turning
Groove Turning

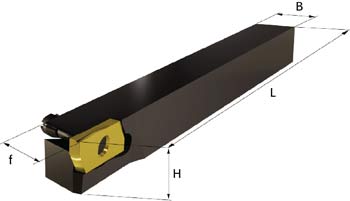

WhizFix tool holder for turning
Tool holder B H L f Insert Pin + Nut Bit Stock Price
group
WPJ11ER/L 88K-8T 8 8 125 8 J11ER/L Pin 8 K3 a A62
WPJ11ER/L 1010K-8T 10 10 125 10 J11ER/L Pin 8 K3 a A62
WPJ15ER/L 1010K-8T 10 10 125 10 J15ER/L Pin 12 J5 a A62
WPJ15ER 1212F-8T 12 12 85 12 J15ER Pin 12 J5 r A61
WPJ15ER/L 1212K-8T 12 12 125 12 J15ER/L Pin 12 J5 a A62
WPJ15ER 0500K-8T 1/2” 1/2” 125 1/2” J15ER Pin 12 J5 r A62
WPJ15ER/L 1616K-8T 16 16 125 16 J15ER/L Pin 12 J5 a A63
WPJ20ER 1212K-8T 12 12 125 12 J20ER Pin 16 K3 r A62
WPJ20ER 0500K-8T 1/2” 1/2” 125 1/2” J20ER Pin 16 K3 r A62
WPJ20ER 1616K-8T 16 16 125 16 J20ER Pin 16 K3 r A63
WPJ20ER 2020K-8T 20 20 125 20 J20ER Pin 16 K3 r A64

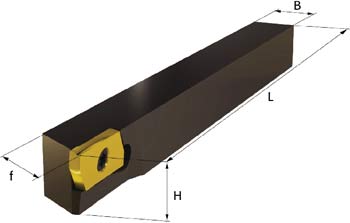

WSJ

Tool holder with conventional center-lock screw for straight turning, copy turning, groove turning and profile turning.



Go to Inserts for:
Turning
 Copy Turning
Groove Turning

Tool holder with centerlock screw for turning
Tool holder H B L f Insert Screw Key Stock Price
group
WSJ11ER/L 88K-8T 8 8 125 8 J11ER/L M2,5x6 t7IP a A52
WSJ15ER 0810K-8T 8 10 125 10 J15ER M3x7 t9IP R A52
WSJ15ER/L 1010K-8T 10 10 125 10 J15ER/L M3x7 t9IP a A52
WSJ15ER/L 1212K-8T 12 12 125 12 J15ER/L M3x7 t9IP a A52
WSJ15ER 0500K-8T 1/2” 1/2” 125 1/2” J15ER M3x7 t9IP r A52
WSJ15ER/L 1616K-8T 16 16 125 16 J15ER/L M3x7 t9IP a A53
WSJ15ER 2020K-8T 20 20 125 20 J15ER M3x7 t9IP a A54
WSJ20ER 1212K-8T 12 12 125 12 J20ER M4x9 t15 r A52
WSJ20ER 0500K-8T 1/2” 1/2” 125 1/2” J20ER M4x9 t15 r A52
WSJ20ER 1616K-8T 16 16 125 16 J20ER M4x9 t15 r A53
WSJ20ER 2020K-8T 20 20 125 20 J20ER M4x9 t15 r A54
WSJ20ER 2525M-8T 25 25 150 25 J20ER M4X9 t15 r A55
WSJ20ER 1000M-8T 1” 1” 150 1” J20ER M4X9 t15 r A55

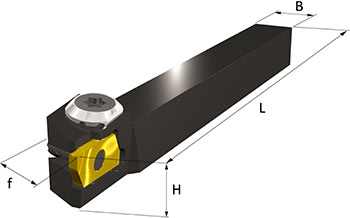

WPJ Coolant Through Tool Holder

Tool holder with WhizFix clamping and coolant through for straight turning, copy turning, groove turning and profile turning.

Go to Inserts for:
Turning
 Copy Turning
Groove Turning

WPJ tool holder with high pressure coolant
Tool holder H B L f Insert Plug Pin + Nut Bit Stock Price
group
WPJ15ER 1010K-8C 10 10 125 10 J15ER M8x1 Pin 12 J5 r A82
WPJ15ER 1010H-8C 10 10 100 10 J15ER M8x1 Pin 12 J5 r A82
WPJ15ER 1212K-8C 12 12 125 12 J15ER 1/8 NPT Pin 12 J5 r A82
WPJ15ER 0500K-8C 1/2” 1/2” 125 1/2” J15ER 1/8 NPT Pin 12 J5 r A82
WPJ15ER 1616K-8C 16 16 125 16 J15ER 1/8 NPT Pin 12 J5 r A83
WPJ20ER 1216K-8C 12 16 125 16 J20ER 1/8 NPT Pin 16 K3 r A82
WPJ20ER 0516K-8C 1/2” 16 125 16 J20ER 1/8 NPT Pin 16 K3 r A82
WPJ20ER 1616K-8C 16 16 125 16 J20ER 1/8 NPT Pin 16 K3 r A83
WPJ20ER 2020K-8C 20 20 125 20 J20ER 1/8 NPT Pin 16 K3 r A83

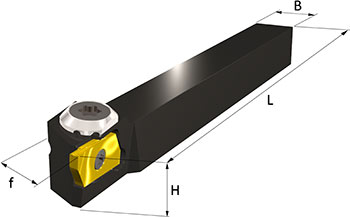

WSJ Coolant Through Tool Holder

Tool holder with center lock screw and high pressure coolant for straight turning, copy turning, groove turning and profile turning.



Go to Inserts for:
Turning
 Copy Turning
Groove Turning

WSJ tool holder with high pressure coolant
Tool holder H B L f Insert Plug Screw Key Stock Price
Group
WSJ11ER 88H-8C 8 8 100 10 J11ER M5x0,8 M2,5x6 t7IP r A73
WSJ11ER 88K-8C 8 8 125 10 J11ER M5x0,8 M2,5x6 t7IP r A73
WSJ15ER 1010h-8c 10 10 100 10 J15ER M8x1 M3x7 t9IP r A72
WSJ15ER 1010K-8c 10 10 125 10 J15ER M8x1 M3x7 t9IP r A72
WSJ15ER 1212K-8C 12 12 125 12 J15ER 1/8" NPT M3x7 t9IP r A72
WSJ15ER 0500h-8C 1/2” 1/2” 100 1/2” J15ER 1/8" NPT M3x7 t9IP r A72
WSJ15ER 0500K-8C 1/2” 1/2” 125 1/2” J15ER 1/8" NPT M3x7 t9IP r A72
WSJ15ER 1616K-8C 16 16 125 16 J15ER 1/8" NPT M3x7 t9IP r A73
WSJ15ER 0750K-8C 3/4" 3/4" 125 3/4" J15ER 1/8" NPT M3x7 t9IP r A73
WSJ15ER 2020K-8C 20 20 125 20 J15ER 1/8" NPT M3x7 t9IP r A74
WSJ20ER 1216K-8C 12 16 125 16 J20ER 1/8" NPT M4x9 t15 r A72
WSJ20ER 0516K-8C 1/2” 16 125 16 J20ER 1/8" NPT M4x9 t15 r A72
WSJ20ER 1616K-8C 16 16 125 16 J20ER 1/8" NPT M4x9 t15 r A73
WSJ20ER 2020K-8C 20 20 125 20 J20ER 1/8" NPT M4x9 t15 r A74
WSJ20ER 2525M-8C 25 25 150 25 J20ER 1/8" NPT M4X9 t15 r A74
WSJ20ER 1000M-8C 1” 1” 150 1” J20ER 1/8" NPT M4X9 t15 r A74

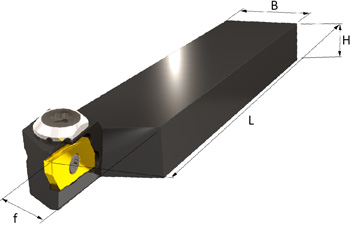

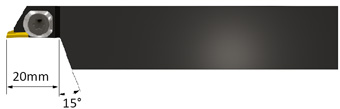

WSJ | Shifted WhizHip Toolholders

Tool holder with shifted edge for extended nose collets



Go to Inserts for:
Turning
 Copy Turning
Groove Turning


Toolholder H B L f Insert Plug Screw Key Stock Price group
WSJ15ER 1020H-8C 10 20 100 10 J15ER M8x1 M3x7 T9IP r A72
WSJ15ER 1224K-8C 12 24 125 12 J15ER 1/8” NPT M3x7 T9IP r A72
WSJ15ER 0510K-8C 1/2” 1” 125 1/2” J15ER 1/8” NPT M3x7 T9IP r A72
WSJ15ER 1632K-8C 16 32 125 16 J15ER 1/8” NPT M3x7 T9IP r A73

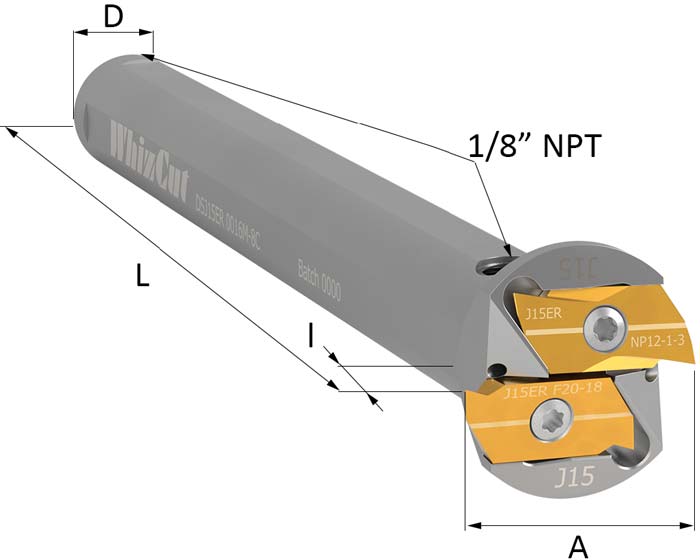

DSJ

Round shank double insert Tool holder for straight turning, copy turning, groove turning and profile turning with flat bed lathes.



Go to Inserts for:
Turning
 Copy Turning
Groove Turning

Round shank double tool holder for turning
Tool holder D A L I Insert Plug Screw Key Stock Price
Group
DSJ15ER 0625M-8C 5/8" 24 150 25 J15ER 1/8” NPT M3x7 T9IP r A87
DSJ15ER 0016M-8C 16 24 150 25 J15ER 1/8” NPT M3x7 T9IP r A87
DSJ15ER 0750M-8C 3/4" 24 150 25 J15ER 1/8” NPT M3x7 T9IP r A87
DSJ15ER 0020M-8C 20 24 150 25 J15ER 1/8” NPT M3x7 T9IP r A87
DSJ15ER 0022M-8C 22 24 150 25 J15ER 1/8” NPT M3x7 T9IP r A87
DSJ15ER 0025M-8C 25 24 150 25 J15ER 1/8” NPT M3x7 T9IP r A87
DSJ15ER 1000M-8C 1" 24 150 25 J15ER 1/8” NPT M3x7 T9IP r A87

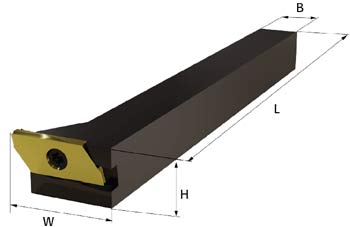

ZSJ

Tool holder for Turning and Copy Turning with flat bed lathes.



Go to:
Turning inserts
 Copy turning inserts
Groove turning inserts

Tool holder for turning and copy turning in flat bed lathes
Tool holder B H L W Insert Screw Key Stock Price Group
ZSJ15ER 1212K-8T 12 12 125 20 J15ER M3x7 J3IP r A72
ZSJ15ER 1616K-8T 16 16 125 24 J15ER M3x7 J3IP r A73

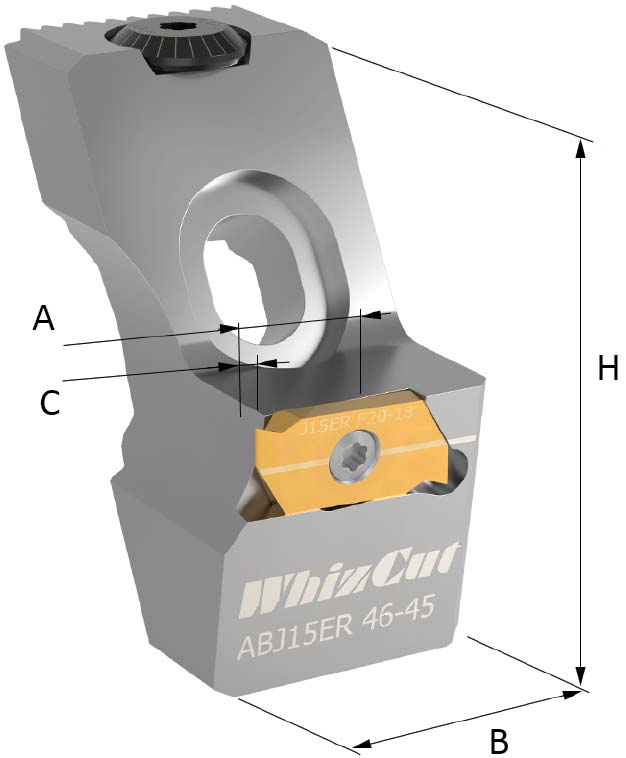

ABJ| Height Adjustable Tool holders for Back Working and Flat Bed Lathes

WhizCut tool holder system, WhizAdjust, that allows very quick and easy height adjustment without losing in stability. This makes it perfect for threading against the sub spindle.



Go to:
Toolholder shank
Turning inserts
 Copy turning inserts
Groove turning inserts
Toolholder Head H B A C Max DOC Max feed length Insert type Clamping Screw Key Stock Price Group
ABJ15ER-46-45 46 24 2 2 45 J15ER M3x7 T9IP r D55







Stock status
a = Stock standard in ER and EL
b = Against inquiry
r = Stock standard in ER only
l = Stock standard in EL only
