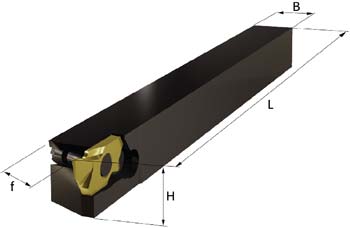

WPK | Toolholders with WhizFix pint type clamping
Tool holder with
WhizFix pin clamping for grooving, threading, parting off
and back turning.
Go to inserts for:
Grooving
Threading
Parting Off
Back Turning |
|
| Tool holder |
H |
B |
L |
f |
Insert |
Pin + Nut |
Bit |
Stock |
Price
group |
| WPK11ER/L 88K-2P |
8 |
8 |
125 |
8 |
K11ER/L |
Pin 8 |
K3 |
a |
A62 |
| WPK11ER/L 1010K-2P |
10 |
10 |
125 |
10 |
K11ER/L |
Pin 8 |
K3 |
a |
A62 |
| WPK15ER/L 1010K-2P |
10 |
10 |
125 |
10 |
K15ER/L |
Pin 12 |
J5 |
a |
A62 |
| WPK15ER 1212F-2P |
12 |
12 |
85 |
12 |
K15ER |
Pin 12 |
J5 |
r |
A61 |
| WPK15ER/L 1212K-2P |
12 |
12 |
125 |
12 |
K15ER/L |
Pin 12 |
J5 |
a |
A62 |
| WPK15ER 0500K-2P |
1/2” |
1/2” |
125 |
1/2” |
K15ER |
Pin 12 |
J5 |
r |
A62 |
| WPK15ER/L 1616K-2P |
16 |
16 |
125 |
16 |
K15ER/L |
Pin 12 |
J5 |
a |
A63 |
| WPK20ER 1212K-2P |
12 |
12 |
125 |
12 |
K20ER |
Pin 16 |
K3 |
r |
A62 |
| WPK20ER 0500K-2P |
1/2” |
1/2” |
125 |
1/2” |
K20ER |
Pin 16 |
K3 |
r |
A62 |
| WPK20ER 1616K-2P |
16 |
16 |
125 |
16 |
K20ER |
Pin 16 |
K3 |
r |
A63 |
| WPK20ER 2020K-2P |
20 |
20 |
125 |
20 |
K20ER |
Pin 16 |
K3 |
r |
A64 |
|

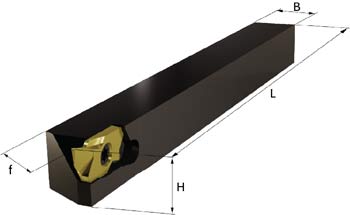

WSK | Toolholder with conventional clamping
Tool holder with
center-lock screw for grooving, threading, parting off
and back turning.
Go to inserts for:
Grooving
Threading
Parting Off
Back Turning |
|
| Tool holder |
B |
H |
L |
f |
Insert |
Screw |
Key |
Stock |
Price
group |
| WSK11ER/L 88K-2P |
8 |
8 |
125 |
8 |
K11ER/L |
M2,5x6 |
t7IP |
a |
A52 |
| WSK15ER 0810H-2P |
8 |
10 |
100 |
10 |
K15ER |
M3x7 |
t9IP |
R |
A52 |
| WSK15ER/L 1010K-2P |
10 |
10 |
125 |
10 |
K15ER/L |
M3x7 |
t9IP |
a |
A52 |
| WSK15ER/L 1212K-2P |
12 |
12 |
125 |
12 |
K15ER/L |
M3x7 |
t9IP |
a |
A52 |
| WSK15ER/L 0500K-2P |
1/2” |
1/2” |
125 |
1/2” |
K15ER/L |
M3x7 |
t9IP |
a |
A52 |
| WSK15ER/L 1616K-2P |
16 |
16 |
125 |
16 |
K15ER/L |
M3x7 |
t9IP |
a |
A53 |
| WSK15ER 2020K-2P |
20 |
20 |
125 |
20 |
K15ER |
M3x7 |
t9IP |
r |
A54 |
| WSK15ER 2525M-2P |
25 |
25 |
150 |
25 |
K15ER |
M3x7 |
t9IP |
r |
A55 |
| WSK15ER 1000M-2P |
1” |
1” |
150 |
1” |
K15ER |
M3x7 |
t9IP |
r |
A55 |
| WSK20ER 1212K-2P |
12 |
12 |
125 |
12 |
K20ER |
M4x9 |
t15 |
r |
A52 |
| WSK20ER 0500K-2P |
1/2” |
1/2” |
125 |
1/2” |
K20ER |
M4x9 |
t15 |
r |
A52 |
| WSK20ER 1616K-2P |
16 |
16 |
125 |
16 |
K20ER |
M4x9 |
t15 |
r |
A53 |
| WSK20ER 2020K-2P |
20 |
20 |
125 |
20 |
K20ER |
M4x9 |
t15 |
r |
A54 |
| WSK20ER 2525M-2P |
25 |
25 |
150 |
25 |
K20ER |
M4x9 |
t15 |
r |
A55 |
| WSK20ER 1000M-2P |
1” |
1” |
150 |
1” |
K20ER |
M4x9 |
t15 |
r |
A55 |
|

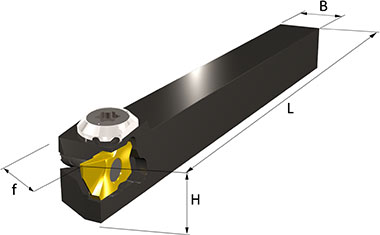

WPK | Pin-type toolholders for high pressure coolant
Tool holder with
WhizFix pin clamping and coolant through for grooving, threading, parting off
and back turning.
Go to inserts for:
Grooving
Threading
Parting Off
Back Turning |
 |
| Tool holder |
H |
B |
L |
f |
Insert |
Plug |
Pin + Nut |
Bit |
Stock |
Price
Group |
| WPK15ER 1010H-2C |
10 |
10 |
100 |
10 |
K15ER |
M8x1 |
Pin12 |
T20 |
r |
A82 |
| WPK15ER 1010K-2C |
10 |
10 |
125 |
10 |
K15ER |
M8x1 |
Pin12 |
T20 |
r |
A82 |
| WPK15ER 1212K-2C |
12 |
12 |
125 |
12 |
K15ER |
1/8 NPT |
Pin12 |
T20 |
r |
A82 |
| WPK15ER 0500K-2C |
1/2” |
1/2” |
125 |
1/2” |
K15ER |
1/8 NPT |
Pin12 |
T20 |
r |
A82 |
| WPK15ER 1616K-2C |
16 |
16 |
125 |
16 |
K15ER |
1/8 NPT |
Pin12 |
T20 |
r |
A83 |
|
WSK | Screw type toolholder for high pressure coolant
Tool holder with
center-lock screw and coolant through for grooving, threading, parting off
and back turning.
Go to inserts for:
Grooving
Threading
Parting Off
Back Turning |
 |
| Tool holder |
H |
B |
L |
f |
Insert |
Plug |
Screw |
Key |
Stock |
Price
Group |
| WSK11ER 88H-2C |
8 |
8 |
100 |
10 |
K11ER |
M5x0,8 |
m2,5x6 |
T7IP |
r |
A73 |
| WSK11ER 88k-2C |
8 |
8 |
125 |
10 |
K11ER |
M5x0,8 |
m2,5x6 |
T7IP |
r |
A73 |
| WSK15ER 1010H-2C |
10 |
10 |
100 |
10 |
K15ER |
M8x1 |
M3x7 |
T9IP |
b |
A72 |
| WSK15ER 1010K-2C |
10 |
10 |
125 |
10 |
K15ER |
M8x1 |
M3x7 |
T9IP |
b |
A72 |
| WSK15ER/L 1212K-2C |
12 |
12 |
125 |
12 |
K15ER |
1/8" NPT |
M3x7 |
T9IP |
b |
A72 |
| WSK15ER 0500H-2C |
1/2” |
1/2” |
100 |
1/2” |
K15ER |
1/8" NPT |
M3x7 |
T9IP |
b |
A72 |
| WSK15ER/L 0500K-2C |
1/2” |
1/2” |
125 |
1/2” |
K15ER |
1/8" NPT |
M3x7 |
T9IP |
b |
A72 |
| WSK15ER/L 1616K-2C |
16 |
16 |
125 |
16 |
K15ER |
1/8" NPT |
M3x7 |
T9IP |
b |
A73 |
| WSK15ER 0750K-2C |
3/4" |
3/4" |
125 |
3/4" |
K15ER |
1/8" NPT |
M3x7 |
T9IP |
r |
A73 |
| WSK20ER 1216K-2C |
12 |
16 |
125 |
16 |
K20ER |
1/8" NPT |
M4x9 |
T15 |
r |
A72 |
| WSK20ER 0516K-2C |
1/2” |
16 |
125 |
16 |
K20ER |
1/8" NPT |
M4x9 |
T15 |
r |
A72 |
| WSK20ER 1616K-2C |
16 |
16 |
125 |
16 |
K20ER |
1/8" NPT |
M4x9 |
T15 |
r |
A73 |
| WSK20ER 2020K-2C |
20 |
20 |
125 |
20 |
K20ER |
1/8" NPT |
M4x9 |
T15 |
r |
A74 |
| WSK20ER 2525M-2C |
25 |
25 |
150 |
25 |
K20ER |
1/8" NPT |
M4x9 |
T15 |
r |
A74 |
| WSK20ER 1000M-2C |
1” |
1” |
150 |
1” |
K20ER |
1/8" NPT |
M4x9 |
T15 |
r |
A74 |
|

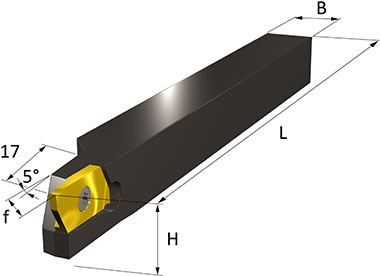

WSK | Tool holders for small parts
Tool holder with
center-lock screw specially designed for small parts when grooving, threading, parting off
and back turning.
Go to inserts for:
Grooving
Threading
Parting Off
Back Turning |
|
 |
| Tool holder |
H |
B |
L |
f |
Insert |
Screw |
Key |
Stock |
Price
group |
| WSK15ER 1010K-2B |
10 |
10 |
125 |
5 |
K15ER |
M3x5 |
T9IP |
r |
A52 |
| WSK15ER 1212K-2B |
12 |
12 |
125 |
6 |
K15ER |
M3x5 |
T9IP |
r |
A52 |
|

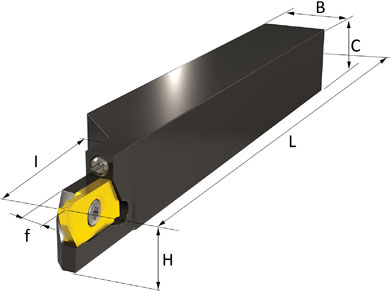

WSK | Narrow WhizHip toolholders for sub spindle gripping
Tool holder with
center-lock screw and high pressure coolant specially designed for parting off small parts.
Go to inserts for:
Grooving
Threading
Parting Off
Back Turning |
|
 |
| Tool holder |
H |
B |
L |
I |
F |
Insert |
Plug |
Screw |
Key |
Stock |
Price
group |
| WSK11ER 88k-2CA |
8 |
8 |
125 |
20,5 |
5 |
K11ER |
M5x0,8 |
M2,5x6 |
T7IP |
r |
A73 |
| WSK15ER 1010H-2CA |
10 |
10 |
100 |
18 |
5 |
K15ER |
M8x1 |
M3x5 |
T9IP |
r |
A72 |
| WSK15ER 1010K-2CA |
10 |
10 |
125 |
18 |
5 |
K15ER |
M8x1 |
M3x5 |
T9IP |
r |
A72 |
| WSK15ER 1212K-2CA |
12 |
12 |
125 |
18 |
5 |
K15ER |
1/8" NPT |
M3x5 |
T9IP |
r |
A72 |
| WSK15ER 0500K-2CA |
1/2” |
1/2” |
125 |
18 |
5 |
K15ER |
1/8" NPT |
M3x5 |
T9IP |
r |
A72 |
| WSK15ER 1616K-2CA * |
16(12) |
16 |
125 |
25,4 |
5 |
K15ER |
1/8" NPT |
M3x5 |
T9IP |
r |
A73 |
* Shank 16x16 mm. Cutting edge lowered to 12 mm for optimal coolant.
|

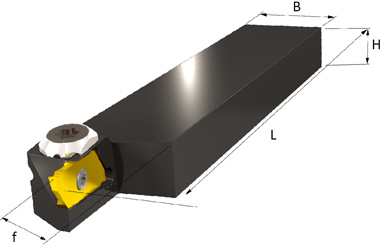

WSK| Shifted WhizHip Toolholders
Tool holder with shifted edge for extended nose collets
Go to inserts for:
Grooving
Threading
Parting Off
Back Turning
|
|
| Toolholder |
H |
B |
L |
f |
Insert |
Plug |
Screw |
Key |
Stock |
Price Group |
| WSK15ER 1020H-2C |
10 |
20 |
100 |
10 |
K15ER |
M8x1 |
M3x7 |
J3IP |
b |
A72 |
| WSK15ER 1224K-2C |
12 |
24 |
125 |
12 |
K15ER |
M8x1 |
M3x7 |
J3IP |
b |
A72 |
| WSK15ER 0510K-2C |
1/2” |
1” |
125 |
1/2” |
K15ER |
1/8 NPT |
M3x7 |
J3IP |
b |
A72 |
| WSK15ER 1632K-2C |
16 |
32 |
125 |
16 |
K15ER |
1/8 NPT |
M3x7 |
J3IP |
b |
A72 |
|

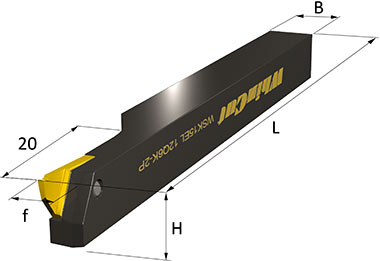

WSK | Left hand toolholder with insert in center
Left hand tool holder with
center-lock screw and insert in center for grooving, threading, parting off
and back turning.
Go to inserts for:
Grooving
Threading
Parting Off
Back Turning |
|
 |
| Tool holder |
H |
B |
L |
f |
Insert |
Screw |
Key |
Stock |
Price
group |
| WSK15EL 12Q6K-2P |
12 |
12 |
125 |
6 |
K15EL |
M3x5 |
T9IP |
l |
A52 |
|

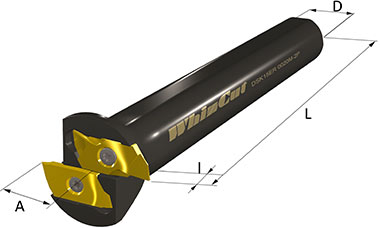

DSK | Double inserts toolholder round shank
Tool holder with round shank and double inserts for
grooving, threading, parting off and back turning with flat bed
lathes.
Go to inserts for:
Grooving
Threading
Parting Off
Back Turning |
|
| Tool holder |
D |
A |
L |
I |
Insert |
Coolant Thread |
Screw |
Key |
Stock |
Price
Group |
| DSK15ER 0625M-8C |
5/8" |
24 |
150 |
25 |
K15ER |
1/8” NPT |
M3x7 |
J3IP |
r |
A87 |
| DSK15ER 0016M-8C |
16 |
24 |
150 |
25 |
K15ER |
1/8” NPT |
M3x7 |
J3IP |
r |
A87 |
| DSK15ER 0750M-8C |
3/4" |
24 |
150 |
25 |
K15ER |
1/8” NPT |
M3x7 |
J3IP |
r |
A87 |
| DSK15ER 0020M-8C |
20 |
24 |
150 |
25 |
K15ER |
1/8” NPT |
M3x7 |
J3IP |
r |
A87 |
| DSK15ER 0022M-8C |
22 |
24 |
150 |
25 |
K15ER |
1/8” NPT |
M3x7 |
J3IP |
r |
A87 |
| DSK15ER 0025M-8C |
25 |
24 |
150 |
25 |
K15ER |
1/8” NPT |
M3x7 |
J3IP |
r |
A87 |
| DSK15ER 1000M-8C |
1" |
24 |
150 |
25 |
K15ER |
1/8” NPT |
M3x7 |
J3IP |
r |
A87 |
|

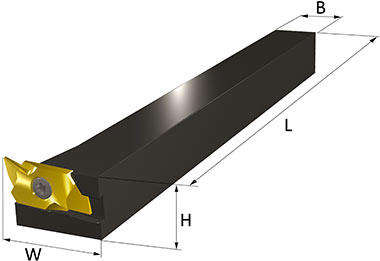

ZSK | Square shank toolholders
Tool holder for
grooving, threading, parting Off and Back Turning
with flat bed lathes.
Go to:
Grooving inserts
Threading inserts
Parting off inserts
Back turning inserts |
|
| Tool holder |
B |
H |
L |
W |
Insert |
Screw |
Key |
Stock |
Price
Group |
| ZSK15ER 1212K-2P |
12 |
12 |
125 |
20 |
K15ER |
M3x7 |
T9IP |
r |
A72 |
| ZSK15ER 1616K-2P |
16 |
16 |
125 |
24 |
K15ER |
M3x7 |
T9IP |
r |
A73 |
|
ABK | WhizAdjust toolholder
Height adjustable tool holder for
grooving, threading, parting off and back turning
with flat bed lathes.
Go to:
Toolholder shank
Grooving inserts
Threading inserts
Parting off inserts
Back turning inserts |
|
| Tool holder head |
H |
B |
A |
C Max
Doc |
Max Feed
Length |
Insert Type |
Clamping Screw |
Key |
Stock |
Price
Group |

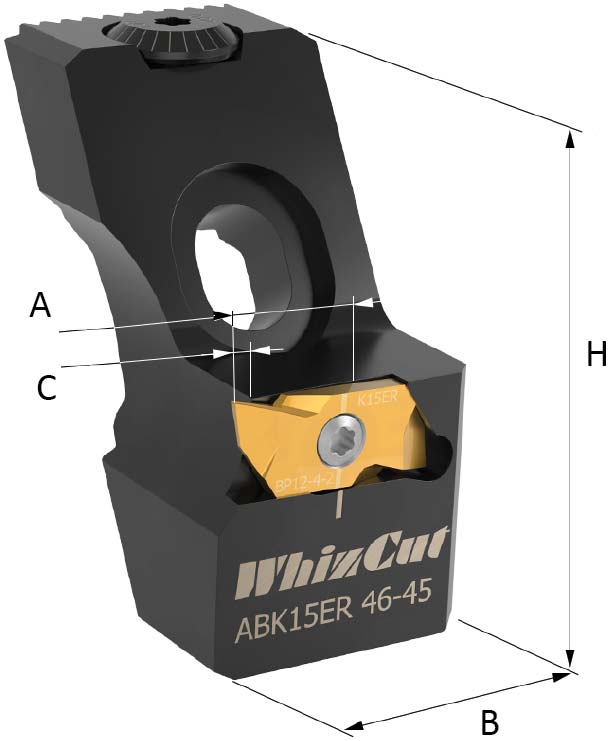

| ABK15ER-46-45 |
46 |
24 |
12 |
4 |
45 |
k15ER |
M3x7 |
T9IP |
r |
D55 |
|
| |
